45kw Electric Smelting Furnace Induction Melting Furnace
I. Brief introduction of induction melting furnace
Medium frequency induction melting furnace adopts IGBT as the core inverter. Alternating current in the coils melts the metals in the crucible and then heats the hot metal to the temperature needed. It is the heat treatment prior to forging, sintering and hot rolling in casting and melting industries.
II. Applications of LSZ series induction melting furnace
The LSZ series induction melting furnace can melt the following material:
(1) iron, pig iron, cast iron;
(2) steel, stainless steel, cast steel, carbon steel and bearing steel;
(3) precious metal like gold, silver;
(4) copper, brass, bronze;
(5) aluminum, aluminum alloy;
(6) zinc, lead, tin, magnesium, nickel, titanium.
III. Melting Capacity of LSZ series Induction Melting Furnace:
| Model | Rated Power | Melting Capacity | | steel, stainless steel | copper, gold, silver | aluminum, aluminum alloy | | LSZ-15 | 15kw | 3kg | 10kg | 3kg | | LSZ-25 | 25kw | 5kg | 20kg | 5kg | | LSZ-35 | 35kw | 10kg | 30kg | 10kg | | LSZ-45 | 45kw | 18kg | 50kg | 18kg | | LSZ-70 | 70kw | 25kg | 100kg | 25kg | | LSZ-90 | 90kw | 40kg | 120kg | 40kg | | LSZ-110 | 110kw | 50kg | 150kg | 50kg | | LSZ-160 | 160kw | 100kg | 250kg | 100kg | |
III. Main technical parameters of LSZ series induction melting furnace:
| Model | Power | Input current | Voltage | Oscillation frequency | Connecting wire | Control switch |
| LSZ-15 | 15kw | 18A | 3-phase 380V, 50/60 Hz | 1-15KHz | 10mm2 | 3*40A |
| LSZ-25 | 25kw | 36A | 10mm2 | 3*60A |
| LSZ-35 | 35kw | 57A | 16mm2 | 3*80A |
| LSZ-45 | 45kw | 80A | 35mm2 | 3*120A |
| LSZ-70 | 70kw | 110A | 50mm2 | 3*150A |
| LSZ-90 | 90kw | 140A | 75mm2 | 3*225A |
| LSZ-110 | 110kw | 160A | 90mm2 | 3*225A |
| LSZ-160 | 160kw | 240A | 120mm2 | 3*300A |
IV. Main Features of LSZ series Induction Melting Furnace:
(1) IGBT module imported from .
(2) Higher reliability and lower maintenance cost.
(3) 100% Duty cycle. Continuous working is allowed at maximum output power.
(4) Display of heating power, heating current and oscillation frequency.
(5) Simple to install. Installation can be done by unprofessional persons very easily.
(6) Convenient to change crucibles for different melting material.
(7) Continuously heating ability for 24 hours.
V. Factory Photo:
VI. Certificates:
VII. Related Products:
| Induction Heating Machine | Induction Quenching Machine | Induction Brazing Machine | Large Melting Furnce |
 |  |  |  |
 |  |  |  |
Product Tags:
|
|

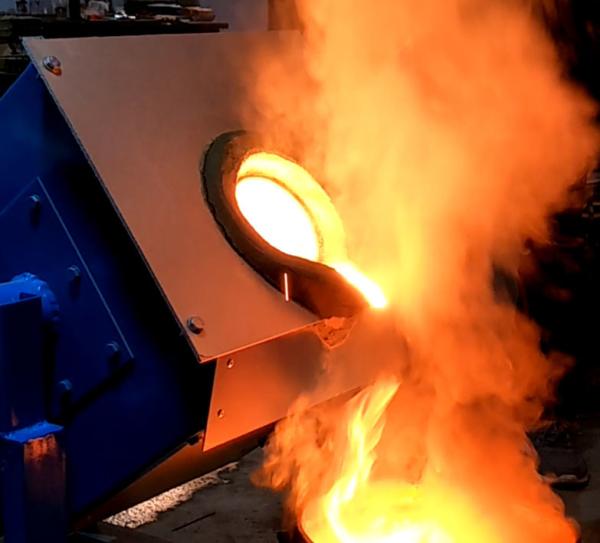

10kg 20kg 30kg 50kg Iron Smelting Furnace Induction Melting Furnace Images
|
